PRODUCTS / TAPPING

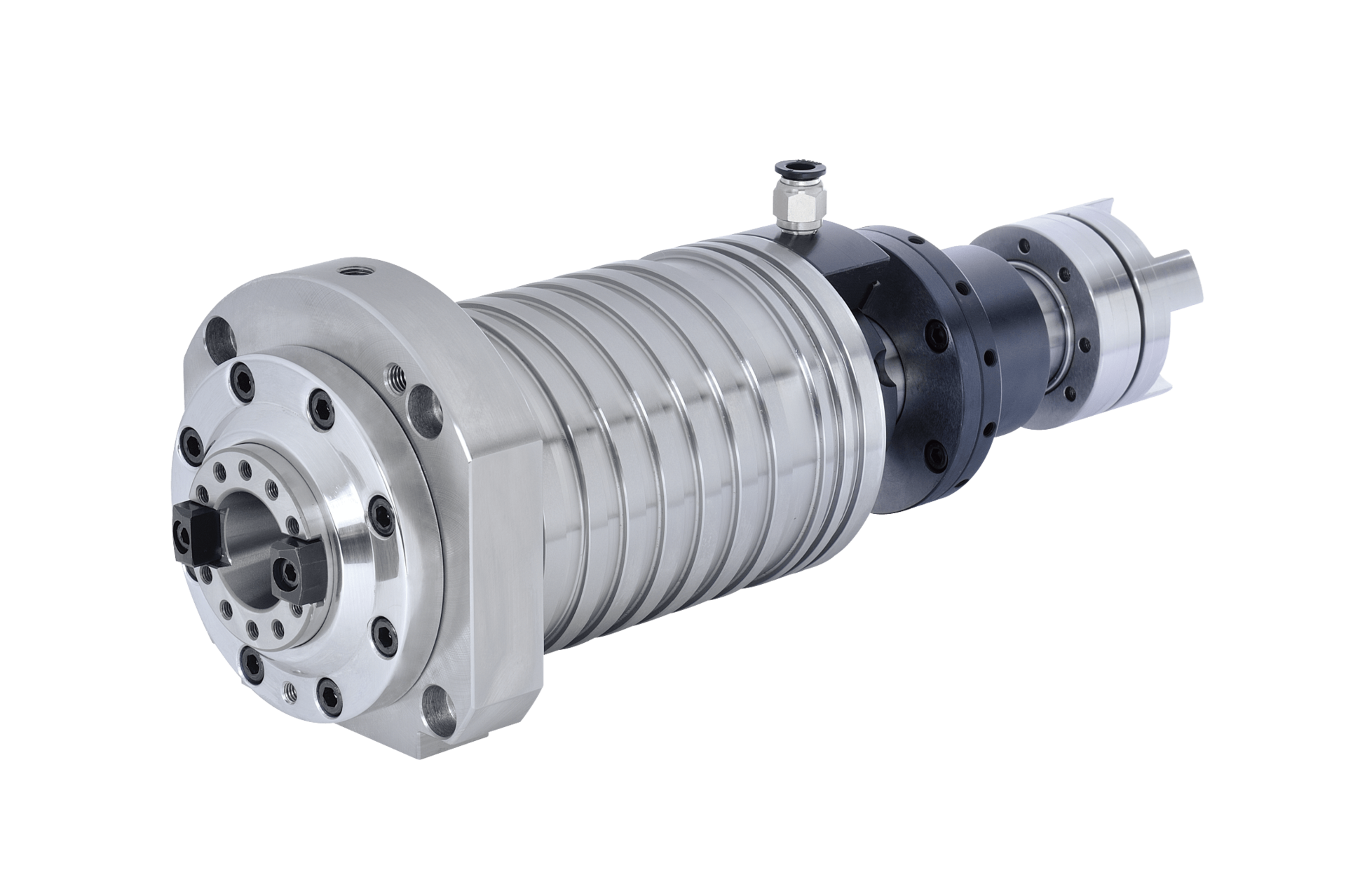

Tapping Direct-Drive Spindle


  • High dynamic rotation accuracy
  • High accuracy and low vibration
  • Same flange interface, high interchangeability



Specifications

Model RD3018
Outer diameter(mm) Ø100
Maximum speed (rpm) 24000
Taper hole specifications BT30/BBT30
Pulling force (kgf) 250±20
Bearing inner diameter (mm) Ø40
Bearing lubrication method Grease/Oil/Gas
Cooling method Oil Cooling
Weight(kg) Approx. 16
Center water outlet Optional

While listed models are standardized catalog spindles, customized spindle specifications are available. Welcome to contact us for your individually customized designs for any use.
