PRODUCTS / GRINDING

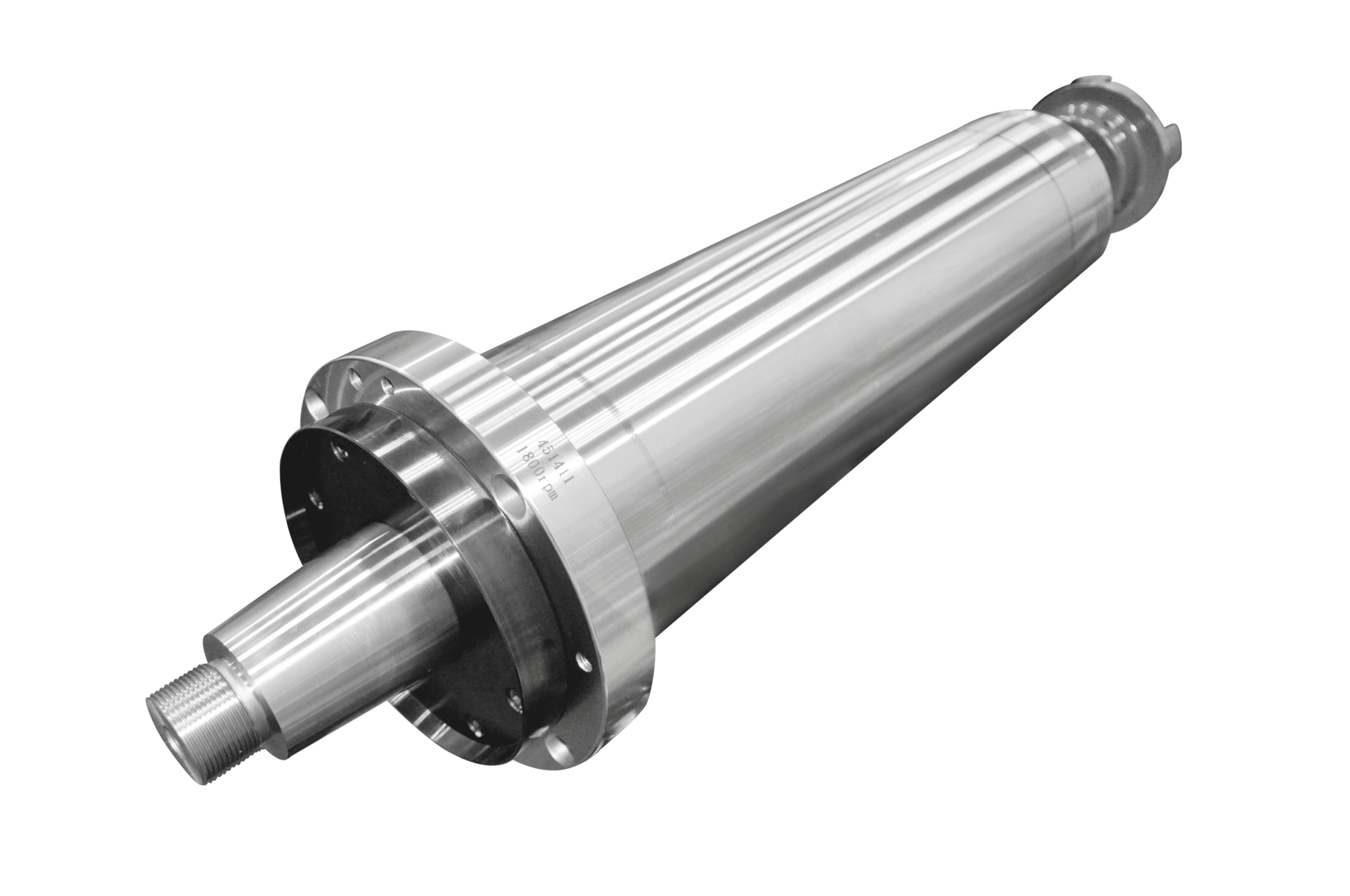

Grinding Direct-Drive Spindle


  • High dynamic rotation accuracy
  • High accuracy and low vibration
  • Same flange interface, high interchangeability



Specifications

Model RG0024
Outer diameter(mm) Ø130
Maximum speed (rpm) 3000
Bearing inner diameter (mm) Ø65
Bearing lubrication method grease
Weight(kg) Approx. 80

While listed models are standardized catalog spindles, customized spindle specifications are available. Welcome to contact us for your individually customized designs for any use.
