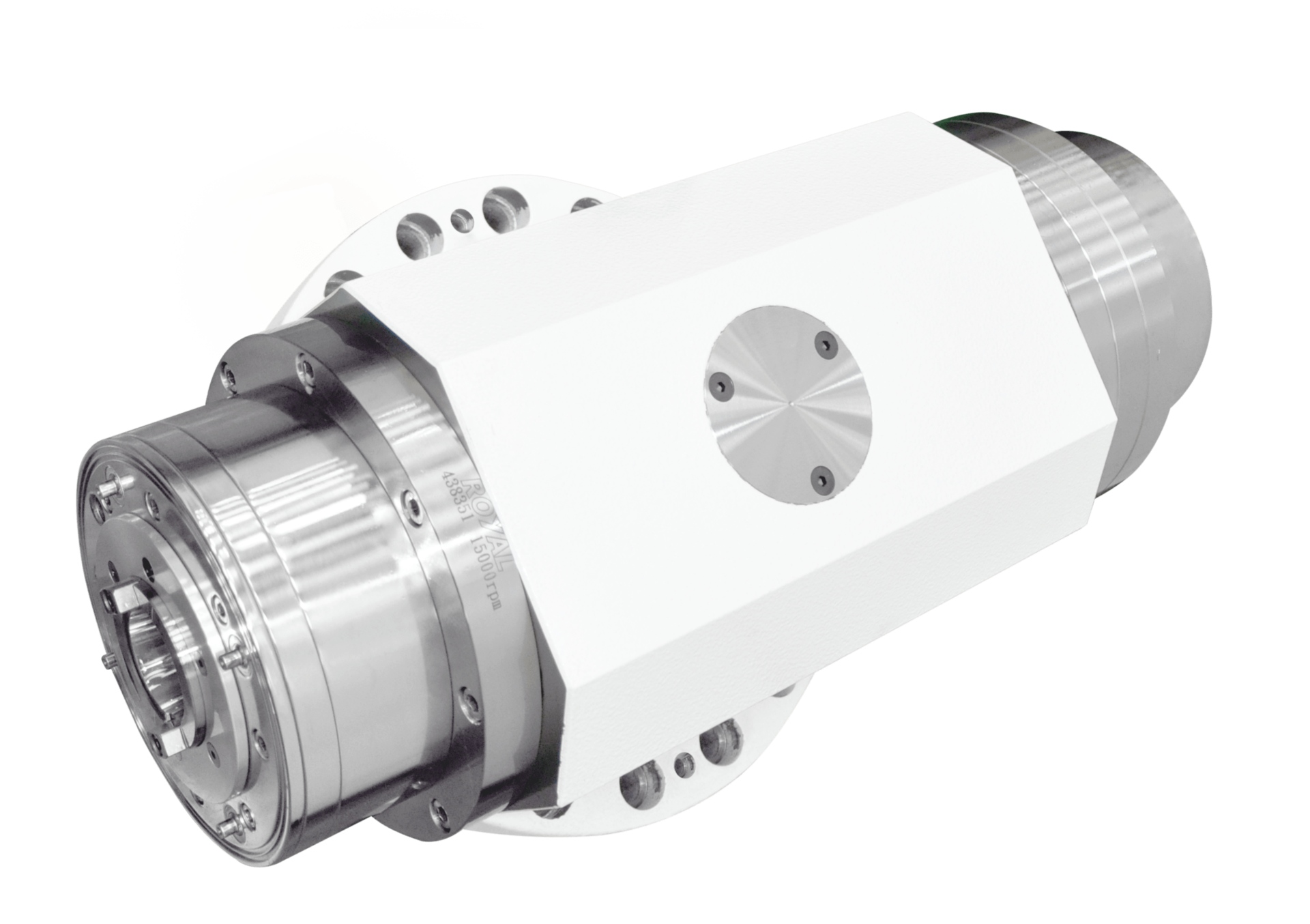

Multi-Spindle Motorized Spindle
Specifications
| Model | RE4125 | REH128 | REH098 |
| Outer diameter(mm) | Ø210 | Ø210 | Ø235 |
| Maximum speed (rpm) | 15000 | 15000 | 15000 |
| Taper hole specifications | BBT40 | HSKA63 | HSKA63 |
| Pulling force (kgf) | 1200±100 | 2000±250 | 2000±250 |
| Bearing inner diameter (mm) | Ø70 | Ø70 | Ø70 |
| Bearing lubrication method | grease | grease | grease |
| Motor Specifications | ATE AC160/170/8(380V) | ATF IM160/170/6(380V) | SIEMENS 1FE 1093-4WN11 |
| Motor power S1 (kW) | 15 | 28.3 | 28 |
| Motor torque S1 (Nm) | 71.6 | 60.1 | 75 |
| Cooling method | Oil Cooling | Oil Cooling | Oil Cooling |
| Weight(kg) | Approx. 152 | Approx. 170 | Approx. 170 |
| Center water outlet | Optional | Optional | Optional |
While listed models are standardized catalog spindles, customized spindle specifications are available. Welcome to contact us for your individually customized designs for any use.
