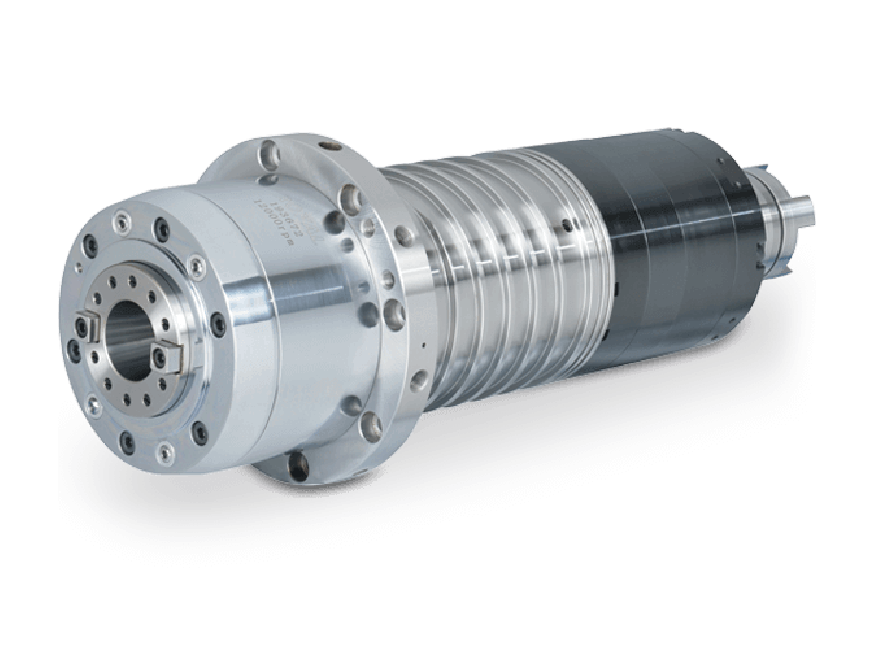

Milling Direct-Drive Spindle

 ALL    Motorized     Direct-Drive    Belt-Drive    Gear-Drive

High Precision



  • High Dynamic Rotary Accuracy
  • High Precision, Low Vibration
  • Same Flange Dimension, High Adaptability


Specifications

Model RD3068 RDH025 RD4172 RDH085 RD4152 RDH060 RD4014 RDH025 RD5012 RD5002 RDH061 RD5059 RDH008
Outer diameter(mm) Ø100 Ø155 Ø120 Ø120 Ø150 Ø150 Ø155 Ø155 Ø155 Ø190 Ø190 Ø200 Ø200
Maximum speed (rpm) 24000 15000 15000 15000 18000 18000 15000 15000 10000 12000 12000 12000 12000
Taper hole specifications BT30 HSKA63 BT40/BBT40 HSKA63 BT40/BBT40 HSKA63 BT40/BBT40 HSKA63 BT50/BBT50 BT50/BBT50 HSKA100 BT50/BBT50 HSKA100
Pulling force (kgf) 250±50 2050±250 900±100 2050±250 1200±100 2050±250 1000±100 2050±250 1500±100 1800±100 5150±650 1800±100 5150±650
Bearing inner diameter (mm) Ø40 Ø70 Ø60 Ø60 Ø70 Ø70 Ø70 Ø70 Ø80 Ø90 Ø90 Ø100 Ø100
Bearing lubrication method Grease/Oil/Gas grease grease grease grease grease grease grease grease grease grease Grease/Oil/Gas Grease/Oil/Gas
Cooling method Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling
Weight(kg) Approx. 38 Approx. 38 Approx. 38 Approx. 38 Approx. 60 Approx. 60 Approx. 80 Approx. 80 Approx. 70 Approx. 112 Approx. 112 Approx. 134 Approx. 134
Center water outlet Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional

While listed models are standardized catalog spindles, customized spindle specifications are available. Welcome to contact us for your individually customized designs for any use.
