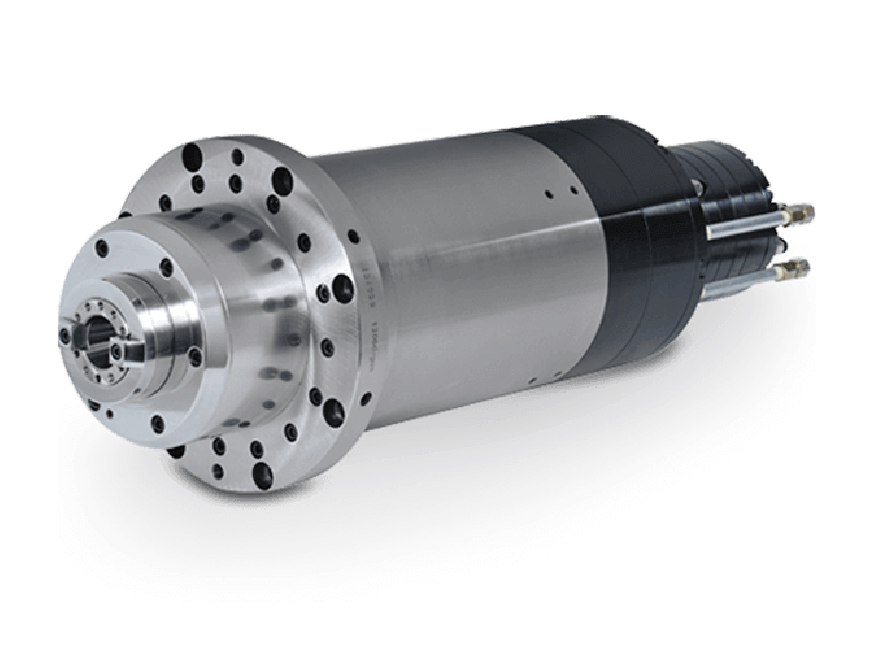

Milling Motorized Spindle

 ALL Motorized     Direct-Drive     Belt-Drive    Gear-Drive

High Precision


  • High dynamic rotation accuracy
  • Balance correction within G1, low vibration
  • Easy to modularize
  • Small thermal displacement and high stability
  • The whole machine is short in height and has small inertia


High Efficiency


  • High Motor Power, High Moments of Inertia


Specifications

Model RE3012 REH022 RE4121 REH063 RE4122 REH112 REH040 REH069 RE4064 REH020 RE4114 RE4114 REH099 REH099 RE5007 RE5025 REH104
Housing OD (mm) Ø120 Ø120 Ø150 Ø150 Ø170 Ø170 Ø170 Ø170 Ø210 Ø210 Ø230 Ø230 Ø230 Ø230 Ø250 Ø310 Ø310
Max. Speed (rpm) 30000 30000 20000 24000 20000 24000 20000 24000 20000 20000 20000 20000 20000 20000 10000 12000 10000
Taper BT30/BBT30 HSKE40 BBT40 HSKA63 BBT40 HSKA63 HSKA50 HSKA63 BBT40 HSKA63 BBT40 BBT40 HSKA63 HSKA63 BBT50 BBT50 HSKA100
Clamping Force (kgf) 250±50 900±200 1000±100 2050±250 1260±60 2050±250 1300±200 2050±250 1260±60 2050±250 1260±60 1260±60 2050±250 2050±250 1900±100 2400±100 5150±650
Bearing ID (mm) Ø45 Ø35 Ø45 Ø35 Ø70 Ø60 Ø70 Ø55 Ø70 Ø60 Ø70 Ø60 Ø60 Ø55 Ø70 Ø55 Ø70 Ø55 Ø70 Ø55 Ø70 Ø60 Ø70 Ø60 Ø70 Ø60 Ø70 Ø60 Ø100 Ø70 Ø100 Ø70 Ø100 Ø70
Motor Specification grease Grease/Oil/Gas Grease/Oil/Gas Grease/Oil/Gas Grease/Oil/Gas Oil and Gas grease Grease/Oil/Gas grease Grease/Oil/Gas Oil and Gas Oil and Gas Oil and Gas Oil and Gas Grease/Oil/Gas Oil and Gas Oil and Gas
Power S1 (kW) ATE AC90/100/4 ATE AC90/100/4 ATE AC120/120/4 ATE AC120/120/4 FANUC BiI FANUC BiI FANUC BiI 100S/20000 FANUC BiI 90L/25000 SIEMENS 1FE 1083-4WN11 SIEMENS 1FE 1083-4WN11 ATE AC180 /260/4(380V) FANUC αB112L/20000i(220V) ATE AC180 /260/4(380V) FANUC αB112L /20000i(220V) FANUC BiI132L/14000 FANUC aB160LL/13000i FANUC aB160LL/13000i
Torque S1 (Nm) 7.5 7.5 15 15 18.5 11 11 18.5 24.8 24.8 26 High speed coil 18.5 Low speed coil 11.3 26 High speed coil 18.5 Low speed coil 11.3 High speed coil 22 Low speed coil 15 High speed coil 26 Low speed coil 18.5 High speed coil 26 Low speed coil 18.5
Motor torque S1 (Nm) 6 6 12.1 12.1 29.4 18.5 14 29.4 63 63 123.5 High speed coil 27.2 Low speed coil 86.8 123.5 High speed coil 27.2 Low speed coil 86.8 High speed coil 41.6 Low speed coil 159 High speed coil 99.3 Low speed coil 305 High speed coil 99.3 Low speed coil 305
Cooling Water Cooling Oil cooling / water cooling Water Cooling Water Cooling Oil Cooling Oil cooling / water cooling Oil cooling / water cooling Oil Cooling Water Cooling Water Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling Oil Cooling
Weight(kg) Approx. 30 Approx. 30 Approx. 82 Approx. 82 Approx. 105 Approx. 105 Approx. 120 Approx. 135 Approx. 160 Approx. 160 Approx. 230 Approx. 230 Approx. 230 Approx. 230 Approx. 270 Approx. 410 Approx. 410
CTS Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional

While listed models are standardized catalog spindles, customized spindle specifications are available. Welcome to contact us for your individually customized designs for any use.
